【Commodity name】

Achimie 45X transformer oil

【Product name】

I-30℃ Transformer Oil (General) GB2536

【Product performance】

1. Achimie I-30°C Transformer Oil (General) GB2536 is prepared by using moderately refined low viscosity, low pour point naphthenic base oil (containing a small amount of intermediate base) base oil and high-quality antioxidant compound additives;

2. It is produced under strict quality control procedures, with stable and reliable performance and fixed resources. Achimie 25X, 35X, 45X quality performance meets the GB2536-2011 standard requirements, of which Achimie 45X transformer oil also meets the requirements of IEC60296-2003 plus inhibitor (I) DIN57370 (A), ASTM D3487-2000 (II) standards;

3. It has excellent electrical insulation properties, high breakdown voltage and small dielectric loss factor, which can effectively prevent discharge phenomena and power loss under high-voltage electric fields;

4. Its good thermal stability and oxidation stability can prevent the formation of acid and sludge during use and prolong the service life of electrical equipment;

5. This oil has a low viscosity and provides effective cooling and heat transfer;

6. At the same time, it has excellent low temperature performance, does not contain pour point depressants, and its pour point can be as low as -40°C;

7. Its anti-gassing performance is good, and it can prevent air gap discharge under high-voltage electric field conditions;

8. In addition, its content of naphthenic and aromatic hydrocarbons is appropriate to ensure that it dissolves the sludge formed during the operation of electrical equipment and avoids damaging insulating materials and affecting heat transfer;

9. In addition, this is an environmentally friendly transformer oil because it does not contain any PCBs.

【Scope of application】

Achimie I-30℃ Transformer Oil (General) GB2536 is suitable for transformers of 330KV and below and electrical equipment with similar requirements.

【Viscosity grade】

Achimie Transformer Oil (General) series can provide three grades: 25X, 35X, 45X, etc.

【Packing specifications】

170KG galvanized drum or tanker in bulk

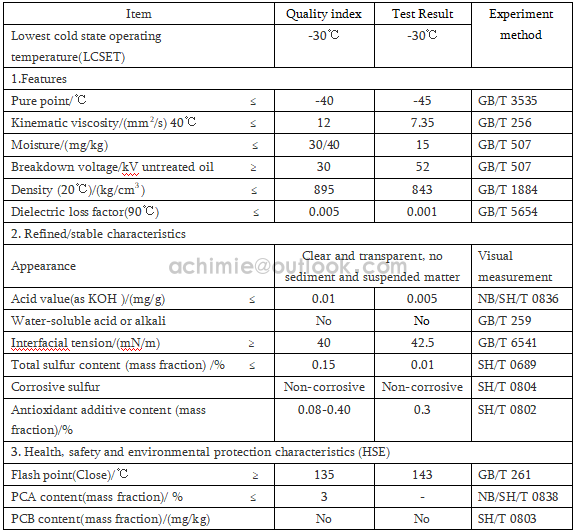

【Typical index】
